Processor
Clock Speed :2.1 GHz
Installed Qty :1
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.2 GHz
Number of Cores :8-core
Processor Main Features :Intel Turbo Boost Technology 2
Processor Number :4208
Server Scalability :2U Rack Mount
Type :Xeon Silver
Upgradability :Upgradable
Cache Memory
Installed Size :11 MB
Installed Size :11
Per Processor Size :11 MB
Per Processor Size :11
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 80%
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Header
Brand :Dell EMC
Manufacturer :Server Solutions

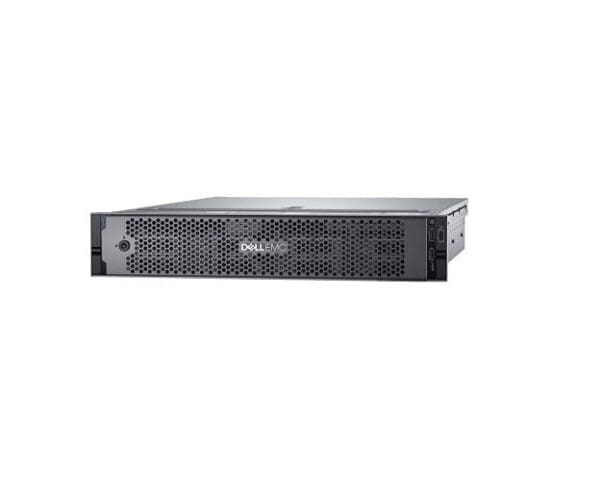

Model :R740
Packaged Quantity :1
Product Line :Dell EMC PowerEdge
Interface Provided
Connector Type :Micro-USB
Location :1 in front
Qty :1
Connector Type :Type A
Qty :2
Type :USB 3.0
Location :1 front, 1 rear
Type :VGA
Location :2 in front
Type :USB 2.0
Type :Management (NIC)
Type :Serial
Miscellaneous
Color Category :Black
Height (Rack Units) :2
OS Provided
Type :No operating system
Power Device
Frequency Required :50/60 Hz
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :750 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1 (with optional power supply)
Type :Power supply – hot plug
Printer
Type :None
RAM
Configuration Features :1 x 16 GB
Empty Slots :23
Form Factor :DIMM 288-pin
Installed Size :16 GB
Installed Size :16
Max Supported Size :1.5 TB
Max Supported Size :1.5
Memory Speed :2400 MHz
Rated Memory Speed :2933 MHz
Slots Qty :24
Technology :DDR4 SDRAM
Slot Provided
Total Qty :4
Optical Storage (2nd)
Drive Type :No optical drive
Type :None
Storage Controller
Buffer Size :2 GB
Installed Qty :1
RAID Level :RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Storage Controller Name :Dell PERC H730P
Type :RAID
Storage Hard Drive
Capacity :240 GB
Storage Removable
Type :None
System
Hard Drive Capacity :240 GB
Type :Server
Dimensions & Weight
Height :3.4 in
Width :19 in
