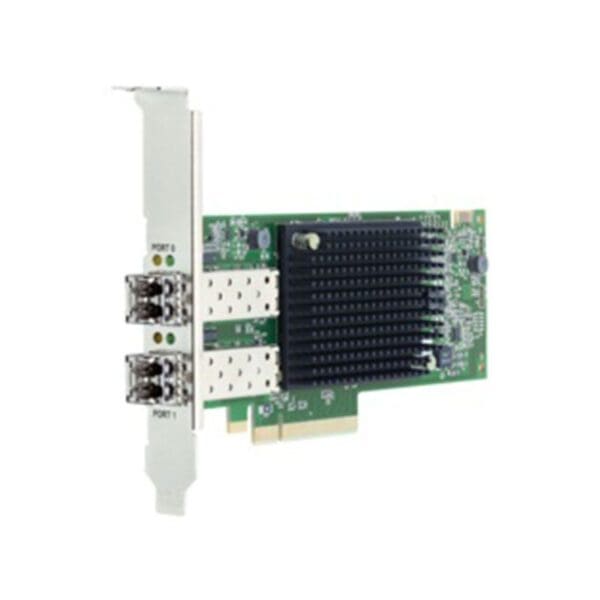

Part Number: Vmx26
Manufacturer: Dell
Technical Specification
Product Type : SAS Controller Card
Generation : Gen 7 (64/32gfc)
Cable Support : 0.5m To 100m At 64gfc/32gfc On 50/125 Îœm Om4 Mmf, 0.5m To 100m At 64gfc/32gfc On 50/125 Îœm Om5 Mmf, 0.5m To 70m At 64gfc/32gfc On 50/125 Îœm Om3 Mmf, 10 Km At 32gfc/16gfc On 9/125 Îœm Singlemode Fiber When Emulex Approved Longwave Transceivers Are Used
Optical Data Rates : 28.05 Gb/s (3200mb/s), 14.025 Gb/s (1600mb/s), 8.5 Gb/s (800mb/s) (auto-detected)
Hardware Environment: Intel X64, Intel X86, And Powerpc
Ports : 2
Optics : Optics Short Wave Lasers With Lc Type Connector Optics
Host Bus Type : Pcie Gen4 X8
I/o Controller : Xe601
Operating Humidity: 5% To 95% Non-condensing
Operating Temperature : 0°c To 55°c
Storage Temperature : -20° To 85°c (-4° To 185°f)
Os Support : Additional Support Is Available From Oems And Partners, Microsoft Windows, Oracle Linux, Oracle Linux With The Unbreakable Enterprise Kernel (uek), Oracle Solaris, Red Hat Enterprise Linux, Suse® Linux Enterprise Server, Vmware Vsphere
