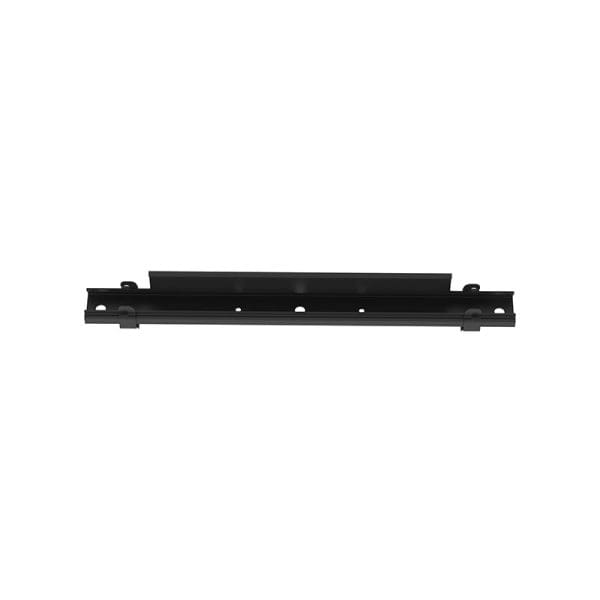

WGTBS18BL Trapeze Bracket, 18 in

Trapeze Bracket, 18 in.The  Trapeze Bracket is used in cable routing systems to support an 18 inch (457.2mm) wide Wyr-Grid® Pathway using a pair of 0.5 inch (12mm) threaded rod drops. The bracket is 2.41 inches H x 21.0 inches L x 2.04 inches W (61.2mm x 533.4mm x 51.8mm). The hardware for attaching the bracket is sold separately. The Wyr-Grid® Trapeze Bracket is sold in packages of one.

WGTBS18BL Trapeze Bracket, 18 in

Specifications

Brand: Punduit

Application: (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner® Path

Product Type: Bracket

Color: Black

Finish/Coating: Powder-Coated

For Use With: Wyr-Grid Pathways

Includes: (1) Wry-Grid Cantilever Bracket(2) Wry-Grid Bracket Clip(3) 1/4-20 X 3/8 Hex Head Cap Screw

Material: Steel

Sub Brand: Wyr-Grid®

Standards Met: RoHS Compliant

Number of Pieces: 1

Height (In.): 2.41

Height (mm): 61.2

Length (In.): 22.5

Length (mm): 571.5

Width (In.): 2.22

Width (mm): 56.4
