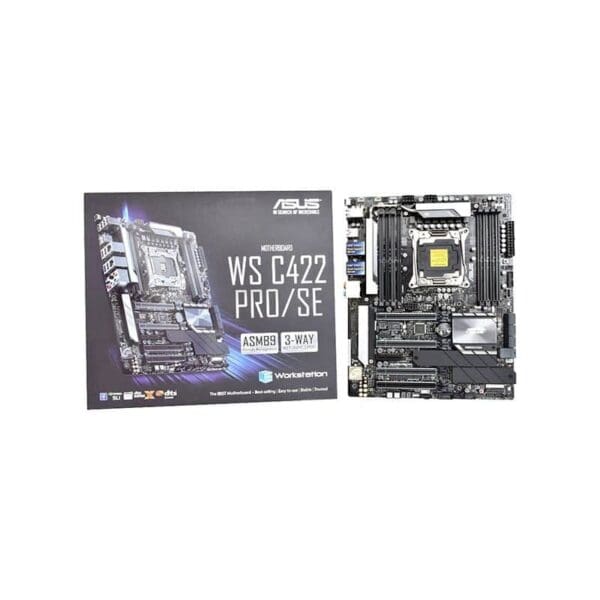

Product Name Asus Motherboard WS C422 Pro/SE ATX Xeon C422 8DIMM 512GB 5PCIE Brown Box
Product Model WS C422 PRO/SE
Product Type Workstation Motherboard
Audio
Audio Channels 7.1
Interfaces/Ports
Total Number of USB Ports 10
Number of USB 3.1 Ports 6
S / PDIF Yes
I/O Expansions
Number of Total Expansion Slots 5
Total Number of PCI Express Slots 5
Number of PCI Express x1 Slots 1
Number of PCI Express x16 Slots 4
Memory
Number of Memory Slots 8
Memory Form Factor LRDIMM
RDIMM
DIMM
Maximum Memory 512 GB
Memory Speed Supported 2666 MHz
2400 MHz
2133 MHz
Memory Technology DDR4 SDRAM
Network & Communication
Gigabit Ethernet Yes
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket R4 LGA-2066
Processor Supported Xeon
Video
Onboard Video No
I/O Controller
Controller Type Serial ATA/600
Intel VROC Yes
Intel RSTe Yes
RAID Supported Yes
RAID Levels 10
1
0
Onboard Interfaces
Number of SATA Interfaces 6
Number of M.2 Interfaces 2
Total Number of Onboard USB Ports 5
Number of Onboard USB 3.1 Ports 3
Physical Characteristics
Form Factor ATX
Width 12″
Depth 9.6″
