General Information

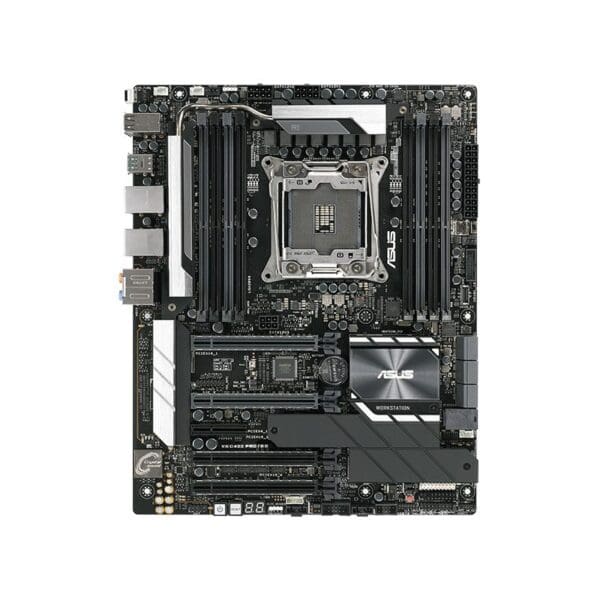

Product Name WS C422 Sage/10G WK MB LGA2066 ECC DDR4 M.2 U.2 C422 ATX
Product Model WS C422 SAGE/10G
Product Type Workstation Motherboard
Audio
Audio Channels 7.1
Interfaces/Ports
Total Number of USB Ports 6
Number of USB 3.1 Ports 6
S / PDIF Yes
I/O Expansions
Number of Total Expansion Slots 7
Total Number of PCI Express Slots 7
Number of PCI Express x16 Slots 7
Memory
Number of Memory Slots 8
Memory Form Factor LRDIMM
RDIMM
DIMM
Maximum Memory 512 GB
Memory Speed Supported 2666 MHz
2400 MHz
2133 MHz
Memory Technology DDR4 SDRAM
Network & Communication
10Gigabit Ethernet Yes
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket R4 LGA-2066
Processor Supported Xeon
Video
Onboard Video No
I/O Controller
Controller Type Serial ATA/600
Intel VROC Yes
Intel RSTe Yes
RAID Supported Yes
RAID Levels 10
1
0
5
Onboard Interfaces
Number of SATA Interfaces 8
Number of M.2 Interfaces 2
Total Number of Onboard USB Ports 3
Number of Onboard USB 3.1 Ports 3
Physical Characteristics
Form Factor SSI CEB
Width 12″
Depth 10.5″
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
Country of Origin China
