Model
Brand
ASUS
Model

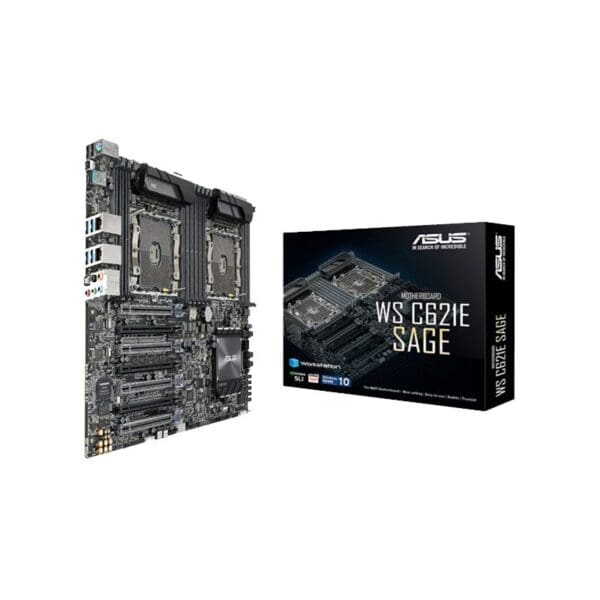

WS C621E Sage
Supported CPU
CPU Socket Type
Dual LGA 3647
CPU Type
Dual Intel Socket P (LGA 3647) for Intel Xeon Scalable Processors Family (205W)
Chipsets
North Bridge
Intel C621
Memory
DDR4 Standard
DDR4 2666 / 2400 MHz RDIMM, LR-DIMM Memory
Maximum Memory Supported
768GB
Expansion Slots
PCI Express 3.0 x16
3 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
2 x PCIe 3.0 x16 (x8 mode)
Storage Devices
SATA
10 x SATA 6.0Gb/s
SATA RAID
0/1/5/10
Onboard Video
Onboard Video Chipset
Aspeed AST2500 with 64MB VRAM
Onboard LAN
LAN Chipset
Intel I210-AT
LAN Speed
10/100/1000Mbps
Second LAN Chipset
Intel I210-AT
Second LAN Speed
10/100/1000Mbps
Rear Panel Ports
PS/2
1 x PS/2 keyboard/mouse port
RJ45
2 x RJ45
Features
Features
Storage:
Intel C621 Chipset: 8 x SATA 6Gb/s port (s), Support Raid 0, 1, 5, 10
ASMedia SATA 6Gb/s controller: 2 x SATA 6Gb/s port (s), 4 x U.2 connector, 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
USB Ports:
ASMedia USB 3.1 Gen 2 controller: 2 x USB port (s) (2 at back panel , Type-A + USB Type-CTM)
Intel C621 Chipset: 8 x USB 3.1 Gen 1 port (s) (4 at back panel , 4 at mid-board)
Intel C621 Chipset: 4 x USB 2.0 port (s) (2 at back panel , 2 at mid-board)
Designed for Dual 7th generation LGA2066 socket Intel Xeon W-Series processors with quad U.2, M.2, USB 3.1 Gen2, Dual Intel Gigabit LAN, support for 12 DIMMs of ECC DDR4, Thunderbolt EX3, Intel VROC and Intel Optane Memory compatibility
Winner of 18 #1 Benchmark World Records by the Standard Performance Evaluation Corporation (SPEC)
2-Way Overclocking Performance unlocks the full power of the dual Xeon processors
Next-gen transfer speeds with up to 32 Gbps M.2 and U.2, plus up to 10 Gbps USB 3.1 Type-A and Type-C connections
Industry-leading 7.1-channel HD audio enhanced by ASUS exclusive Realtek S1220A featuring DTS Headphone:X and driven by Japanese capacitors for warm, immersive sound
Patent-pending SafeSlot features an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs, ideal for supporting 4-Way NVIDIA SLI or AMD CrossfireX
Complete IT Infrastructure Management with ASMB9 Out-of-band remote management and In-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates / dispatching
