Processor
Clock Speed :2.1 GHz
Installed Qty :1
Manufacturer :Intel Xeon
Max Supported Qty :2
Max Turbo Speed :3.2 GHz
Number of Cores :8-core
Processor Main Features :Intel Turbo Boost Technology 2
Processor Number :4208
Server Scalability :2-way
Type :Xeon Silver
Upgradability :Upgradable
Audio Input
Type :None
Bay Provided
Form Factor :3.5″
Free Qty :11
Total Qty :12
Cache Memory
Installed Size :11 MB
Installed Size :11
Per Processor Size :11 MB
Per Processor Size :11
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 80%
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Header
Brand :Dell EMC
Manufacturer :Server Solutions

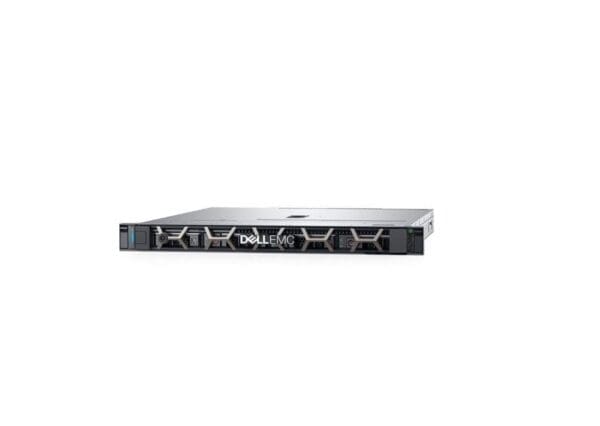

Model :R540
Packaged Quantity :1
Product Line :Dell EMC PowerEdge
Interface Provided
Connector Type :Micro-USB
Location :1 in front
Connector Type :RJ-45
Qty :2
Type :LAN (Gigabit Ethernet)
Location :1 front, 1 rear
Type :VGA
Location :2 in front
Qty :1
Type :USB 2.0
Type :Serial
Type :USB 3.0
Miscellaneous
Color Category :Black
Height (Rack Units) :2
Included Accessories :ReadyRails sliding rails without cable management arm
Manufacturer Selling Program :Dell Smart Value
Pricing Type :Build To Plan (BTP)
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Broadcom BCM5720
Ethernet Ports :2 x Gigabit Ethernet
Interface Type :LAN-on-motherboard (LOM)
Remote Management Controller :Integrated Dell Remote Access Controller 9 Enterprise (iDRAC9)
OS Provided
Type :No operating system
Power Device
Frequency Required :50/60 Hz
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :750 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply – hot-plug
Printer
Type :None
RAM
Configuration Features :1 x 16 GB
Empty Slots :15
Features :Dual rank, Registered
Form Factor :DIMM 288-pin
Installed Size :16 GB
Installed Size :16
Max Supported Size :512 GB
Max Supported Size :512
Memory Speed :2400 MHz
Rated Memory Speed :2666 MHz
Slots Qty :16 DDR4 Slots
Technology :DDR4 SDRAM
Optical Storage (2nd)
Drive Type :No optical drive
Type :None
Storage Controller
Buffer Size :2 GB
Installed Qty :1
Storage Controller Name :Dell PERC H730P
Type :RAID
Storage Hard Drive
Capacity :1 TB
Features :512 native ( 512n )
Interface Type :Serial SATA-600
Storage Removable
Type :None
System
Hard Drive Capacity :1 TB
Type :Server
Dimensions & Weight
Depth :27.7 in
Height :3.4 in
Width :19 in
