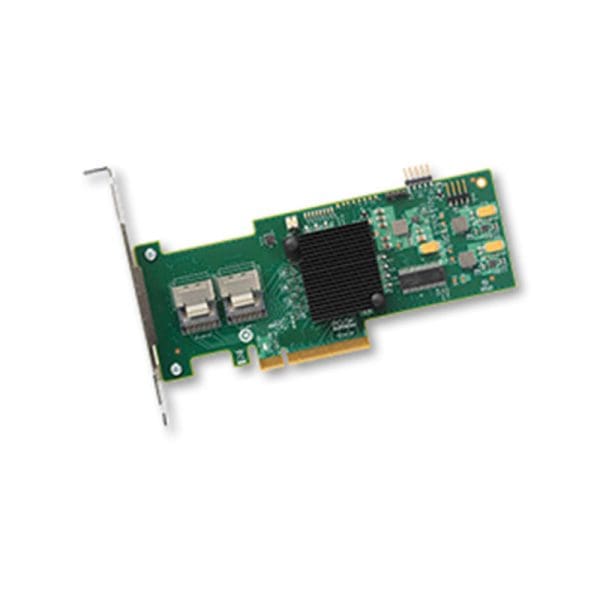

YCKHM Dell LSI 9210-8i 8-port, SAS+SATA 6GBPS TO PCI Express

YCKHM Dell LSI 9210-8i 8-port, SAS+SATA 6GBPS TO PCI Express

$55.00

In the world of storage solutions, the Dell YCKHM LSI 9210-8i takes center stage as an 8-port PCI Express (PCI-E) Integrated Serial-Attached SCSI (SAS) and Serial Advanced Technology Attachment (SATA) Host Bus Adapter (HBA). This comprehensive guide aims to provide a detailed exploration of its features, specifications, and the benefits it brings as a low-profile storage solution.

YCKHM Dell LSI 9210-8i 8-port, SAS+SATA 6GBPS TO PCI Express
$55.00
Contact Us

Manufacturer: Dell

Part Number or SKU# YCKHM

Product Type: SAS/SATA Controller

Interface Type: Host Bus Adapter

Technical Information SAS-SATA Controller

Host Bus Type: x8 Lane PCI Express 2.0

Devices Supported: 256 Non-RAID SAS/SATA Devices

Fusion MPT Support: Fusion MPT 2.0

Internal Connectors: 2 Mini-SAS SFF8087 (Vertical)

Operating Temperature: 0°C to 55°C

Operating Voltage (V): +12V +/-8%, 3.3V +/-8%

PCI Power: 7W Typical (Airflow Min 200 LFM)

Cable Support: Passive Copper

I/O Controller: LSI SAS2008

MTBF: > 2,000,000 Hours

SKU: YCKHM Category: Tag:
