Header
Manufacturer :Asus Components
Brand :ASUS
Product Line :ASUS

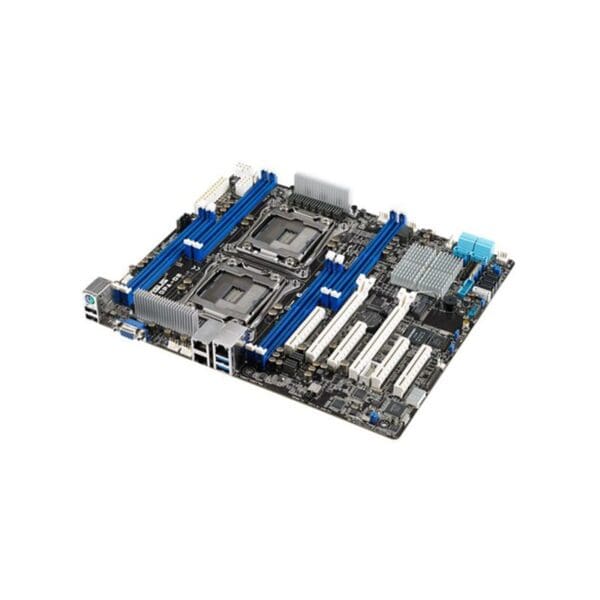

Model :Z10PA-D8
Packaged Quantity :1
Processor
Installed Qty :0
Max Supported Qty :2
Mainboard
Form Factor :ATX
Processor Socket :LGA2011-v3 Socket
Compatible Processors :Xeon E5-2600 v3 series, Xeon E5-2600 v4 series
Data Bus Transfer Rate :9.6 GT/s
Chipset Type :Intel C612
Supported RAM Technology :DDR4 SDRAM
Supported RAM Speed :2133 MHz, 2400 MHz, 1866 MHz, 1600 MHz, 1333 MHz
Supported RAM (Registered or Buffered) :Registered, Load-Reduced
RAM Slots :8 DIMM slots
Power Connectors :24-pin main power connector, 2 x 8-pin ATX12V connectors
Mainboard Features
BIOS Features :IPMI support
Hardware Monitoring :CPU core temperature, CPU fan tachometer, Chassis fan tachometer
Hardware Features :Beat Thermal Chokes, ASUS DIGI+ VRM, ASUS Flex-E Technology, Dr.MOS MOSFET
Interfaces
Storage :Serial ATA-600 (RAID), M.2 socket
Storage Ports :10 x SATA-600 (RAID), 1 x M.2
RAID Features :Intel Rapid Storage Technology
USB 3.0 / FireWire :USB 3.0
USB / FireWire Ports Configuration (Active) :2 x USB 3.0 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers) :2 x USB 3.0 + 2 x USB 2.0
RAM
Max Supported Size :512 GB, 512 GB, 512 GB, 512 GB
Features :Quad channel memory architecture
RAM Supported
Details :512 GB – Load-Reduced – ECC, 256 GB – registered – ECC
Video Memory
Installed Size :32 megabyte, 32 megabyte, 32 megabyte, 32 megabyte
Video Output
Type :Graphics adapter
Graphics Processor :ASPEED AST2400
Audio Output
Type :None
Networking
Network Controller :2 x Intel I210AT
Network :2 x Gigabit Ethernet
Data Link Protocol :Ethernet, Gigabit Ethernet, Fast Ethernet
Expansion Slots
Expansion Slots :3 x PCIe 3.0 x8, 2 x PCIe 3.0 x16 (x16 mode (x8 mode if neighbour slot is occupied)), 1 x PCIe 2.0 x8 (x4 mode), 8 x DIMM 288-pin, 2 x CPU
Storage Interfaces
Storage Interfaces :SATA-600 / PCIe -connectors: 1 x M.2, SATA-600 -connectors: 10 x 7pin SATA – RAID 0 / RAID 1 / RAID 10 / RAID 5
Interface Provided
Interfaces :2 x LAN (Gigabit Ethernet), 1 x management, 2 x USB 2.0, 1 x PS/2 keyboard / mouse, 2 x USB 3.0, 1 x VGA
Internal Interfaces
Internal Interfaces :2 x USB 3.0 – header, 1 x serial – header, 2 x USB 2.0 – header
